• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Model:
    α-C400iC
    Maximum processing speed:
    33 mm/min
    Applicable industry:
    General purpose
    Surface size:
    626mm×441mm
    Worktable stroke:
    400 * 300
    Z axis stroke:
    255
    Maximum cutting thickness:
    250 mm
    Taper:
    ±30°/80mm
    Maximum load bearing:
    500kg
    Main engine weight:
    1800
    Electrode wire diameter range:
    0.05-0.3
    Worktable bearing weight:
    500kg
    achining accuracy:
    ±0.002
    Control system:
    31 i-wb
    Maximum cutting inclination/working thickness:
    250

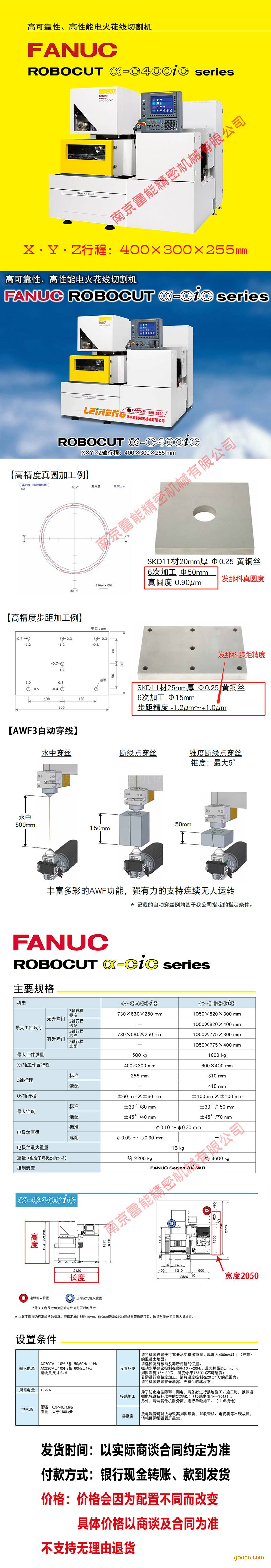

    Product Description

    I. Model, specification, parameters and performance of equipment

    1. Main technical parameters of equipment:
    unit type α-C400iC α-C600iC α-C800iB
    specification of equipment 400mm×300mm 600mm×400mm 800mm×600mm
    workbench size 626mm×441mm 898mm×620mm 1132mm×820mm
    bear the weight of 500Kg 1000Kg 2000Kg
    dispose x-axis 400mm 600mm 800mm
    y-axis 300mm 400mm 600mm
    Z-axis 255mm 310mm 310mm
    inclination ±30°/80mm ±30°/150mm ±30°/150mm
    auxiliary travel U axis ±60mm ±100mm ±100mm
    V axis ±60mm ±100mm ±100mm

    1. Main technical parameters of equipment:
    1. * High cutting efficiency: 330mm2/min
    2. Machine power consumption: 13KVA;
    3. Diameter of electrode wire: Φ 0.10~ Φ 0.30mm;
    4. Filament speed: 15 M/min;
    5. * Excellent roughness: Ra 0.19 m;
    6. Accuracy (according to JIS standard):
